Techniques for the suppression of sidelobes in a non-contiguous orthogonal frequency division multiplexing framework

  • Atif Elahi1Email author,
  • Ijaz Mansoor Qureshi2, 3,
  • Fawad Zaman4,
  • Fahad Munir1 and
  • Adnan Umar1
Applied Informatics20163:6

DOI: 10.1186/s40535-016-0022-1

Received: 4 April 2016

Accepted: 17 August 2016

Published: 26 August 2016

Abstract

In orthogonal frequency division multiplexing (OFDM)-based cognitive radio (CR) systems, high out-of-band radiation (OOBR) results in severe interference to the neighboring users, including licensed users (LUs) and cognitive radio users (CRUs). To tackle that issue, a framework of non-contiguous orthogonal frequency division multiplexing (NCOFDM) is presented in this paper that has the ability of describing any OOBR reduction techniques, regardless of whether a single or multiple techniques are applied. Based on this framework, we proposed four new different schemes that can be viewed as two-level suppression schemes. In the first level, the OOBR is reduced by techniques represented by precoding matrices, while in the second level further reduction of OOBR is done by using generalized sidelobe canceller (GSC). Numerical results show that the proposed schemes can suppress the OOBR significantly in terms of power spectral density (PSD), thus allowing the successful coexistence of LUs, as well as CRUs in a spectrum-sharing environment.

Keywords

Cognitive radio Generalized sidelobe canceller Non-contiguous orthogonal frequency division multiplexing Out-of-band radiation Power spectral density

Background

Orthogonal frequency division multiplexing (OFDM) is considered as the best candidate for cognitive radio systems (CRS) due to its capability of dividing the existing wideband channel into several narrow band orthogonal channels/subcarriers and to transmit those subcarriers in parallel. Some features of OFDM include spectral efficiency, multipath delay spread, robustness to channel fading, etc. On the other hand, due to the large sidelobes of the OFDM subcarriers, CR based on OFDM experiences high out-of-band radiation (OOBR) (Goldsmith 2005; Proakis 2008) that may result in considerable interference with the adjacent bands used by either LUs or CRUs.

To overcome this issue, a number of methods have been proposed recently that can be divided into two categories. Methods belonging to the first category are called the time domain methods, including filtering (Noguet et al. 2011), windowing (El-Saadany et al. 2009; Sahin and Arslan 2011), etc., where the OOBR reduction process is carried out after the inverse fast Fourier transformation (IFFT). Methods belonging to the second category are called the frequency domain methods, including subcarrier weightings (SW) (Cosovic et al. 2006), advanced subcarrier weightings (ASW) (Selim and Doyle 2013), cancellation carriers (CC) (Brandes et al. 2005; Pagadarai et al. 2008b), advanced cancellation carriers (ACC) (Selim et al. 2013; Rady et al. 2015), CC using (genetic algorithm) GA and (differential evolution) DE (Elahi et al. 2016), active and null cancellation carriers (ANCC) (Lopes and Panaro 2013), constellation expansion (CE) (Pagadarai et al. 2008a; Li et al. 2009; Selim et al. 2012), CE using GA (Khan and Yoo 2015) and generalized sidelobe canceller (GSC) (Elahi et al. 2015), etc. where the OOBR elimination process is carried out before the IFFT. Since the available methods suffer from several drawbacks, a suitable combination of two or more than two methods might improve the overall OOBR reduction and alleviate their drawbacks.

In this paper, a non-contiguous orthogonal frequency division multiplexing (NCOFDM) framework is presented that has the ability of representing any OOBR reduction scheme, regardless of whether individual or multiple schemes are applied. Then, according to the place where different schemes are applied, they are categorized into three groups, namely, symbol mapping, precoding and times domain techniques. Based on that framework, four new different schemes are introduced that can be viewed as two-level suppression schemes. In the first level, the OOBR is reduced using CC (Brandes et al. 2005), CC (Pagadarai et al. 2008b), ACC (Selim et al. 2013) and ANCC (Lopes and Panaro 2013), while in the second level, further reduction of OOBR is achieved using GSC. The performance of the proposed schemes is shown with the help of simulations, which show a better reduction of OOBR as compared to the results of the existing methods.

The rest of the paper is organized as follows: the first section describes the “System model”, followed by a description of the “Proposed techniques”. “Simulations results” provides the simulation results of the proposed schemes, while the paper ends with the “Conclusion”.

Notation: (.) H , (.) T , ()* and (.)−1 represent the Hermitian, Transpose, conjugate and inverse, while E [.] represents the expectation.

The lowercase bold letter represents a vector, the uppercase bold letter the matrix, I the identity matrix and O the null matrix.

System model

The block diagram of a non-contiguous orthogonal frequency division multiplexing (NCOFDM) framework is given in Fig. 1.
Fig. 1

Framework of non-contiguous OFDM transmitter

Consider “M” cognitive radio users (CRUs) also called as unlicensed users that employ the available spectrum opportunistically with the help of spectrum sensing. The employed spectrum may be interrupted or uninterrupted, divided into a group of subcarriers \(\beta = \left[ {n_{0} ,n_{1} , \ldots ,n_{{N\text{ - }1}} } \right]\). Here the kth CRU, \(0 \le k \le K-\text{ }1\), employs the subgroup of subcarriers \(\beta_{k} \in \beta\), where \(\beta_{k} = \left[ {n_{0}^{k} ,n_{1}^{k} , \ldots ,n_{{N_{k} -\text{ }1}}^{k} } \right]\) consists of N k subcarriers in total. Suppose \(g_{n}\) represents the transmitted symbol over the nth subcarrier. The baseband signal over the nth subcarrier with one symbol duration is given as:
$$x\left( t \right) = \sum\limits_{n = 0}^{{N{ - }1}} {g_{n} e^{{j2\pi\frac{n}{{T_{s} }}t}} } w\left( t \right),$$
(1)
where T s is the duration of a symbol, while w(t) is the windowing function that can be written as:
$$w\left( t \right) = \left\{ {\begin{array}{*{20}c} 1 & -{\text{ }T_{g} \le t \le T_{s} } \\ 0 & {otherwise} \\ \end{array} } \right.,$$
(2)
where T g the length of the cyclic prefix is inserted to eliminate the influence of intersymbol interference (ISI).
After taking the Fourier transformation of Eq. (1), the NCOFDM signal in the frequency domain is given as:
$$X\left( f \right) = \sum\limits_{n = 0}^{{N-\text{ }1}} {g_{n} s_{n} \left( f \right)} ,$$
(3)
where
$$s_{n} \left( f \right) = {\text{Te}}^{{ -\text{ }j\uppi\left( {T_{s} -\text{ }T_{g} } \right)\left( {f-\text{ }\frac{n}{{T_{s} }}} \right)}} \sin c\left( {T\left( {f-\text{ }\frac{n}{{T_{s} }}} \right)} \right).$$
(4)
Here, T is defined as the symbol duration; with the help of Eqs. (3) and (4) we can get the power spectral density (PSD) of the NCOFDM signal as:
$$P(f) = \frac{1}{T}E\left\{ {\left| {X(f)} \right|^{2} } \right\},$$
(5)
$$P(f) = \frac{1}{T}{\mathbf{s}}^{T} (f)E({\mathbf{gg}}^{H} ){\mathbf{s}}^{*} (f).$$
(6)
Here, \({\mathbf{s}}(f) = \left[ {s_{{n_{0} }} (f),s_{{n_{1} }} (f), \ldots ,s_{{n_{N - 1} }} (f)} \right]^{T}\) and \({\mathbf{g}} = [g_{{n_{0} }} ,g_{{n_{1} }} , \ldots ,g_{{n_{N - 1} }} ]^{T} .\)

Now to protect the LUs which are present in the neighboring frequency bands of the CRUs, the PSD of the NCOFDM signal should be minimized where the LUs are present.

Proposed techniques

In this section, we present four schemes, each having two levels to minimize the OOBR to protect the LUs from the interference of the CRUs. In the first level, the OOBR is minimized using methods which are represented by precoding matrices; these include CC (Brandes method) (Brandes et al. 2005), CC (Pagadarai method) (Pagadarai et al. 2008b), ACC (Selim et al. 2013) and ANCC (Lopes and Panaro 2013), while in the second level further minimization of OOBR is achieved using GSC (Elahi et al. 2015).

First-level minimization

As shown in Fig. 1, the input bit stream is first modulated with phase shift keying (PSK) or quadrature amplitude modulation (QAM) and then passed through the serial to parallel (S/P) block. Consider \({\mathbf{b}}_{k} = [b_{k} (0),b_{k} (1), \ldots ,b_{k} (N_{k} - 1)]^{T}\) that represents the data symbols for the kth CRU, where \(b_{k} (j)\) represents the jth symbol of the kth CRU. Assuming that the information symbols are independently and identically distributed (iid):
$$E\left[ {{\mathbf{b}}_{k} {\mathbf{b}}_{k}^{H} } \right] = {\mathbf{I}}_{{N_{k} \times N_{k} }} ,$$
(7)
where I represents the identity matrix with dimension N k  × N k . After S/P, the data symbol vector is then taken to the frequency domain approach block, the output of which is given by:
$${\mathbf{d}}_{k} = {\mathbf{Q}}_{k} {\mathbf{b}}_{k} ,$$
(8)
where \({\mathbf{d}}_{k} = [d_{k} (0),d_{k} (1), \ldots ,d_{k} (N_{d} - 1)]^{T}\) represents the precoded symbol vector for the kth CRU (note that the dimension of \({\mathbf{d}}_{k}\) is greater than \({\mathbf{b}}_{k}\)), M k  = (N d N k ) is the total number of CCs and
$${\mathbf{Q}}_{k} = \left[ {\begin{array}{*{20}c} {{\mathbf{A}}_{{\frac{{M_{k} }}{2} \times N_{k} }} } \\ {{\mathbf{I}}_{{N_{k} \times N_{k} }} } \\ {{\mathbf{B}}_{{\frac{{M_{k} }}{2} \times N_{k} }} } \\ \end{array} } \right]$$
(9)
can be viewed as a precoding matrix with dimension N d  × N k representing the CC (Brandes method), CC (Pagadarai method), ANCC and ACC which deactivate the subcarriers on the edges and calculate the amplitudes of these subcarriers within defined threshold power that reduces the OOBR in the specific frequency range where LUs are operating. The identity matrix I in Eq. (9) represents the weighting coefficients of the data subcarriers, while the two matrices A and B in Eq. (9) represent the optimized values of the left- and right-sided CCs. The resulting signal for the kth CRU after first-level minimization in the frequency domain will be then given by:
$$T_{k} (f) = \sum\limits_{j = 1}^{{\frac{{M_{k} }}{2}}} {d_{k,j} s_{k,j} (f)} + \sum\limits_{n = 0}^{{N_{k} - 1}} {d_{k,n} s_{k,n} (f)} + \sum\limits_{{j = \frac{{M_{k} }}{2} + 1}}^{{M_{k} }} {d_{k,j} s_{k,j} (f)} .$$
(10)
The PSD of the signal of the kth CRU after first-level minimization is given by:
$$P_{k} (f) = \frac{1}{T}E\left\{ {\left| {T_{k} (f)} \right|^{2} } \right\} = \frac{1}{T}{\mathbf{s}}_{k}^{T} (f)E\left\{ {{\mathbf{d}}_{k} {\mathbf{d}}_{k}^{H} } \right\}{\mathbf{s}}_{k}^{*} (f).$$
(11)

Second-level minimization

In the second-level minimization, further reduction of OOBR is done by first taking the W samples of the signal given in Eq. (10) and are collected in vector \({\mathbf{z}}_{k}\) having dimension W × 1 and passed through the GSC (Elahi et al. 2015). A frequency domain approach is shown in Fig. 2.
Fig. 2

Block diagram of GSC

GSC is the simplest version of linearly constraint minimum variance (LCMV), where the constraint minimization problem is converted into an unconstraint minimization problem and has two branches. The vector \({\mathbf{u}}_{q}\) in the upper branch, also called the quiescent weight vector \({\mathbf{u}}_{a}\), is not adaptive but preserves the coming signal, whereas the lower branch has a blocking matrix B followed by an adaptive weight vector. The purpose of blocking matrix B is to block the chosen part of the signal and maintain the rest of the part. The output of the GSC is given by:
$$Y_{k} (f) = {\mathbf{u}}_{q}^{H} {\mathbf{z}}_{k} - {\mathbf{u}}_{a}^{H} {\mathbf{Bz}}_{k} ,$$
(12)
$$Y_{k} (f) = ({\mathbf{u}}_{q}^{H} - {\mathbf{u}}_{a}^{H} {\mathbf{B}}){\mathbf{z}}_{k} .$$
(13)
The adaptive weight vector u a is used to minimize the sidelobes, which result in OOBR. It adjusts the amplitudes of sidelobes, such that when the signals from the upper and lower branch add with each other, a signal with minimum OOBR results. The expressions for u q , u a and B are available in Elahi et al. (2015) and are given by:
$${\mathbf{u}}_{q} = {\mathbf{C}}\left( {{\mathbf{C}}^{H} {\mathbf{C}}} \right)^{ - 1} {\mathbf{g}},$$
(14)
$${\mathbf{B}} = null\left( {{\mathbf{C}}^{H} } \right).$$
(15)
The optimized adaptive weight vector \({\mathbf{u}}_{a(opt)}\) is the one that minimizes the cost function
$$J({\mathbf{u}}_{a} ) = \left( {{\mathbf{u}}_{q} - {\mathbf{Bu}}_{a} } \right)^{H} {\mathbf{R}}_{{\mathbf{z}}} \left( {{\mathbf{u}}_{q} - {\mathbf{Bu}}_{a} } \right),$$
(16)
i.e., \(\mathop {\hbox{min} }\limits_{{{\mathbf{u}}_{a} }} \left( {{\mathbf{u}}_{q} - {\mathbf{Bu}}_{a} } \right)^{H} {\mathbf{R}}_{{\mathbf{z}}} \left( {{\mathbf{u}}_{q} - {\mathbf{Bu}}_{a} } \right)\) and on solving gives:
$${\mathbf{u}}_{a(opt)} = \left( {{\mathbf{B}}^{H} {\mathbf{R}}_{{\mathbf{z}}} {\mathbf{B}}} \right)^{ - 1} {\mathbf{B}}^{H} {\mathbf{R}}_{{\mathbf{z}}} {\mathbf{u}}_{q} .$$
(17)
Finally,
$${\mathbf{u}}_{GSC} = {\mathbf{u}}_{q} - {\mathbf{Bu}}_{a(opt)} .$$
(18)

Simulation results

This section is divided into two portions. In the first portion, the simulation results demonstrated the performance of the proposed schemes for single CRU operating in the vacant space. The number of subcarriers utilized by a single CRU is 16, in which, e.g., a 64-point FFT is applied for OFDM modulation. Every subcarrier is modulated with a BPSK symbol whose power is normalized to 1. For the first-level suppression in all four proposed schemes, two CCs are reserved on both sides of the data subcarriers. Ten sidelobes are taken on both sides of the spectrum with one frequency sample taken in the middle of every sidelobe in the optimization range, resulting in K l = K r = 10. For the second-level suppression, 301 samples are taken. In Figs. 3, 4, 5 and 6, the PSD curves representing the NCOFDM signals of single CRU utilizing the subband are shown.
Fig. 3

PSD curve of single CRU with the proposed scheme I

Fig. 4

PSD curve of single CRU with the proposed scheme II

Fig. 5

PSD curve of single CRU with the proposed scheme III

Fig. 6

PSD curve of single CRU with the proposed scheme IV

In the second portion, we present the simulation results to represent different CRUs operating in a non-contiguous band. In Figs. 7, 8, 9 and 10, the PSD curves of four CRUs signal in a non-contiguous band have subcarriers {88,…, 120, 200,…, 232, 320,…, 352, 437,…, 469}, and 128-point FFT can be applied for NCOFDM modulation. Each subcarriers is modulated with BPSK symbol whose power is normalized to 1. The spacing between each CRU is considered as equal. In the first-level suppression, two CCs are considered on either side of the subcarriers used by the CRUs, and ten sidelobes on either side of the used spectrum in the optimization range is considered in all four proposed schemes. In the second-level suppression, 766 samples are considered.
Fig. 7

PSD curve of different CRUs having equal spacing with the proposed scheme I

Fig. 8

PSD curve of different CRUs having equal spacing with the proposed scheme II

Fig. 9

PSD curve of different CRUs having equal spacing with the proposed scheme III

Fig. 10

PSD curve of different CRUs having equal spacing with the proposed scheme IV

In Figs. 11, 12, 13 and 14, the PSD curves of four portions of CRUs signal in a non-contiguous band consisting of subcarriers {61,…, 93, 197,…, 229, 320,…, 352, 470,…, 502} are shown. The spacing between them is considered as unequal, and 128-point FFT is applied for NCOFDM modulation and each subcarrier is modulated with BPSK with normalized power equal to 1. In all the proposed schemes in first-level suppression, two CCs are taken on either side of the used subcarriers and ten sidelobes are taken as samples in the optimization range. In the second-level suppression, 707 samples are taken.
Fig. 11

PSD curves of four CRUs signals having unequal spacing with the proposed scheme I

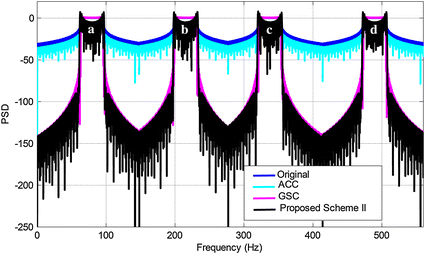

Fig. 12

PSD curves of four CRUs signals having unequal spacing with the proposed scheme II

Fig. 13

PSD curves of four CRUs signals having unequal spacing with the proposed scheme III

Fig. 14

PSD curves of four CRUs signals having unequal spacing with the proposed scheme IV

It can be shown from Figs. 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 and 14 that the resulting PSD curves of the proposed schemes are well below the PSD curves of the existing methods, and sufficient OOBR reduction is achieved in a single user as well as in a multi-CRU environment.

Conclusion

In this paper, we have proposed four different two-level suppression schemes for the reduction of OOBR in NCOFDM-based single as well as multi-CRU environments. For this purpose, we present the NCOFDM framework that has the capability of describing any OOBR suppression schemes, no matter whether we are applying a single or multiple schemes. In this framework, according to the location where the OOBR suppression schemes are employed, these are divided into three groups, which are symbol mapping, precoding and time domain methods. Based on this NCOFDM framework, four, two-level OOBR suppression schemes are proposed, which are the combinations of GSC with the other four methods represented by precoding matrices, namely CC (Brandes et al. 2005), CC (Pagadarai et al. 2008b), ACC (Selim et al. 2013) and ANCC (Lopes and Panaro 2013). Numerical results show that all the proposed schemes get significant reduction of OOBR in a spectrum-sharing environment.

Declarations

Authors’ contributions

AE proposed and implemented the idea. IMQ and FZ supervised. AU and FM helped in drafting and writing of this manuscript. All authors read and approved the final manuscript.

Acknowledgements

The authors thank Miss. Mehreen for her assistance and support of this research.

Competing interests

The authors declare that they have no competing interests.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Department of Electronic Engineering, Faculty of Engineering and Technology, International Islamic University
(2)
Department of Electrical Engineering, Air University
(3)
Institute of Signal Systems and Soft Computing (ISSS)
(4)
Department of Electrical Engineering, COMSATS Institute of Information Technology
